VERSION 2017, 2018, 2019, 2020, and 2021 AVAILABLE NOW.

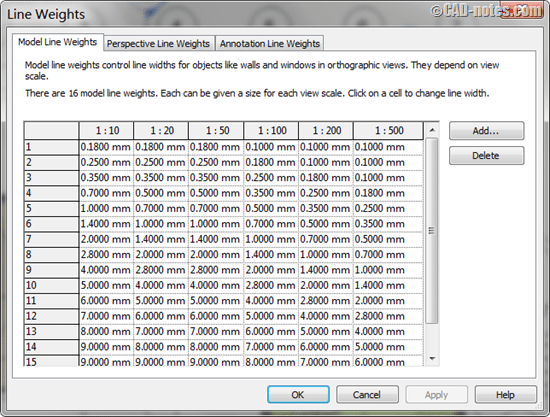

Our lineweight tools really help enhance your experience when it comes to detailing. By using our lineweight tools, you can quickly and efficiently, set your lineweights and either click one button or keyboard shortcut your lines to make the detailing process even faster. All you have to do is using our settings tool, dedicate which button and tool you want saved. You can also choose what icons and images you want for your custom toolbar.
Our region tools really assist in creating fast and efficient hatching in Revit. You can easily create and select up to four of your favorite hatches by going to our settings button and setting your defaults. You can also choose what icons and images you want for your custom toolbar. This takes one less step away the default tools saving you minutes which add up quickly. Do not spend time looking for things you already use constantly… Have it saved and readily available for when you need it!

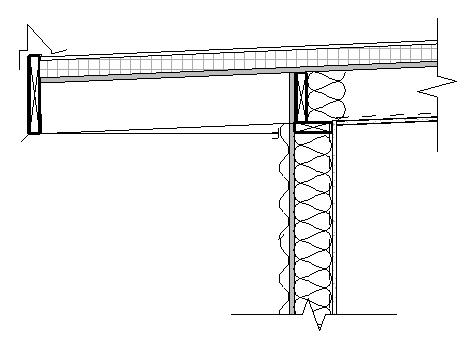

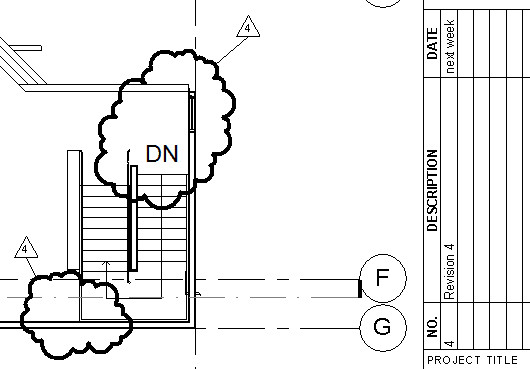

Our typical tools may seem redundant, but we as a company want to reduce your need to go to multiple detail toolbars. By putting in some of the standard tools back into a programmable toolbar, you reduce your timeframe from each click and transition. Our typical tools include standard Detail Line, Revision Clouds, Detail Groups, Insulation, Standard Components, and Regions for when your drawing in section. Let our detail tools increase your productivity!

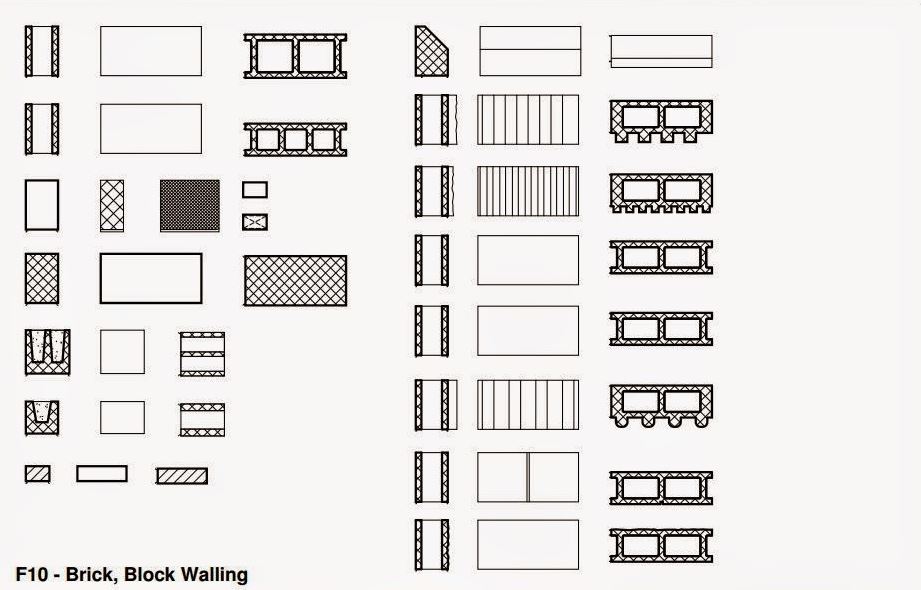

Our details tools really help reduce your workflow when looking for those component buttons. We recognize that there are different fields which is why we have created five tabs (Architectural, Structural, Mechanical, Electrical, And Plumbing) that help accelerate the process in your standard detail components. No longer do you have to experience scrolling through a dropdown of hundreds of components when your standard ones can be at your fingertips. By using our Detail Tools, you can now keyboard shortcut your favorites cutting your detail time in half!

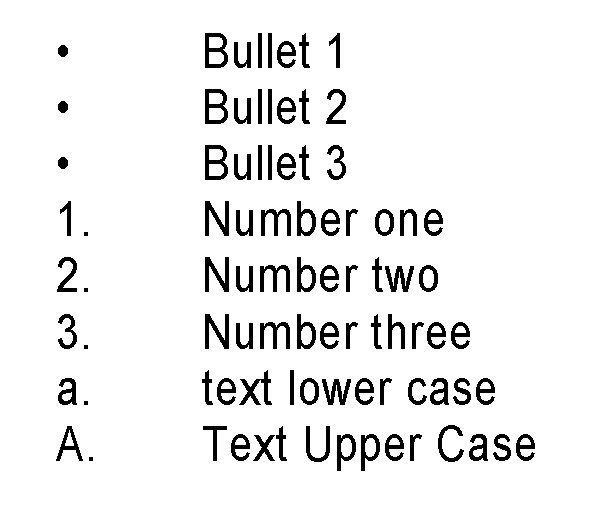

With our new Text Tools, you can now combine text, check your spelling, annotate, and even align text to different sides. Our Text tools are one button click operations much like many of our other tools to allow you to cut your time in half. We do not want you spending hours or even minutes copying and pasting text together; now you do not have too!

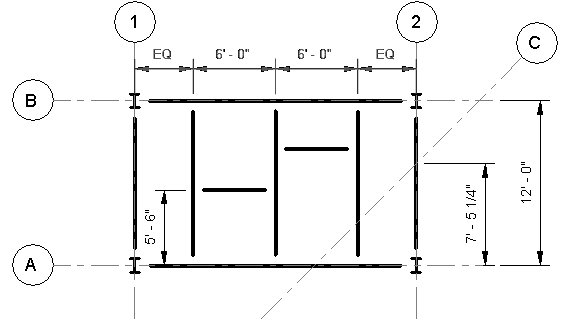

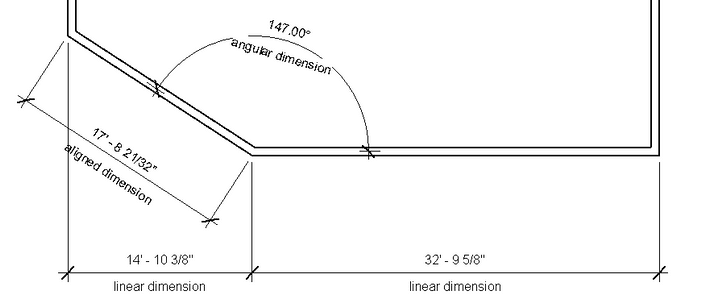

Our dimension tools may seem redundant, but we as a company want to reduce your need to go to multiple detail toolbars. By putting in some of the dimension tools back into a programmable toolbar, you reduce your timeframe from each click and transition. Our dimension tools include Aligned, Linear, Angular, Radial, Diameter, Arc Length, Spot Elevation, Spot Coordinate, and Spot Slope tools for those sections. Let our dimension tools increase your productivity!
